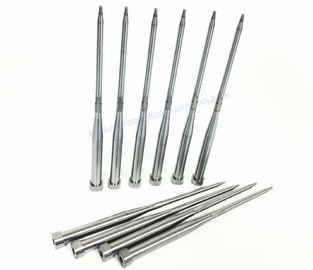

TiCN TiN TiALM Mold Core Pins Mould Components For Pen Mould With 50 HRC

1.2343 Material Mold Core Pins Mould Components For Pen Mould With 50 HRC

Compared with other plastic molds, the pen mold has a deep cavity that is not easy to cool, which makes it difficult to de-mould, and the matching requirements are strictly in the product’s position.

In order to solve the above problems, we recommend using S136/1.2083 high-performance polished steel for rust prevention and drag reduction in the de-moulding for the long parts.

Senlan Indroduction plastic mould parts.pdf

Product Detail

Due to the inner hole is hard to process, and there is a problem of heat dissipation,so we recommend using the beryllium copper to make it, which has a good heat dissipation function and fully meets the requirements of this products.

For the processing, our company is equipped with a special pen mould parts production line, the tolerance can reach 0.005-0.01mm. Concentricity can be controlled within 0.01mm.

Application filed
Medical/Packaging/Aerospace/Electronics/ Die casting dies/Bottle cap/Auto/Cosmetic etc......

Drawing Format
PDF/DWG/DXF/IGS/STEP,etc

Payment Terms
T/T,Paypal,Western Union,50% deposit, balance before shipment is available

Package
PE bag with anticorrosive oil,foaming film with carton,or wooden box according to customer's requirement.

Delivery

Delivery time is usually 7-15 working days for type of ejector pin, specific time is according to quantity.

Shipping

We ship using express such as DHL, UPS, FEDEX etc. or according to customer's requirement . It takes about 3-5 days to arrive your front door, and proof of shippments are provided with a shipping or tracking number. And we ship by occean shippment for larger quantity items, it will be economic for customers.

Our adavanges
1. Clean and tidy workshop.
2.Strick and serious manangement, skilled and expericenced technicians.
3. Various raw material(imported and Chinese) to meet different needs of customers.
4.Equipment of high pricision.( Surface grinding,Sodick Wire-cutting.drilling machine).
5.The QC go along with all the production processes in our factory.
6. You can use English or Japanese for cummunication

Our Services
1. Specialized in precision mold part ,inquiries will get highly attention and be prompt response.(within 24 hours).
2. Advanced facilities and experienced engineers, rich experience in mold parts.
3. Guaranteed quality, superior material quality compared to all other.
4. Customer oriented, efficient solution to control the cost for our client.
5. One-stop service, any questions can be solved at the first time by us.
6. Each part has been got 100% inspection before shipment.

Main products
1.Core pin,cavity pin,insert pin etc
2.HSS punch ,Precision punch ,Special-shaped punch
3.Ejector pins,ejector sleeve,two-stage ejector pins etc
4.Guide pillars ,Guide bushings ,Guide post set
5.Slide Core Units,Latch locks,locating Series

You are always welcome to send us the inquiry and all the questions that you are interested in, I will reply you as soon as possible.
