Product Details:
|
| Hardness: | HRC56 | Accuracy: | +/-0.005mm |
|---|---|---|---|
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Product Name: | Core Insert |
| Quality: | High Quality | Shaping Mode: | Plastic Die Mould |
| Product Material: | Pm23 High Speed Steel | Product: | Plastic Injection Mold |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Autocad, Autocad/Ug/Solidworks, CAD |
| Size: | Customize | Color: | Black |
| Feature: | Durable | Usage: | Injection Plastic Mold Parts |
| Delivery Time: | 5-20 Days | ||
| Highlight: | OEM Service Mold Core Inserts,Electrodes Processing Mold Core Inserts,Plastic Injection Mold Core Inserts |
||

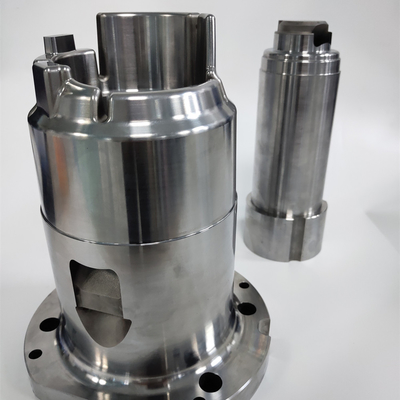

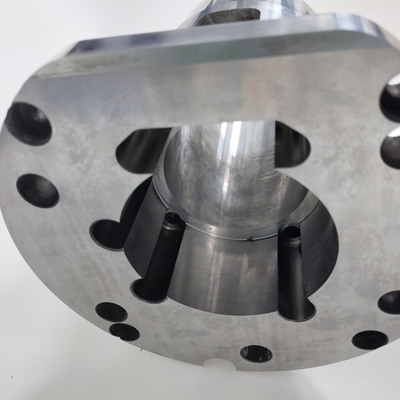

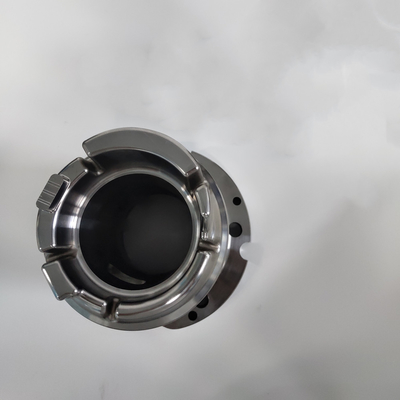

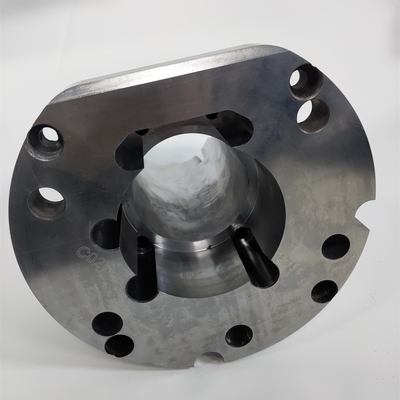

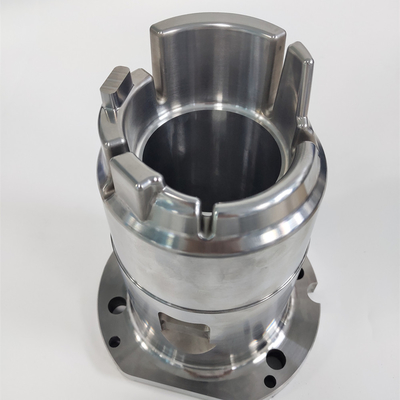

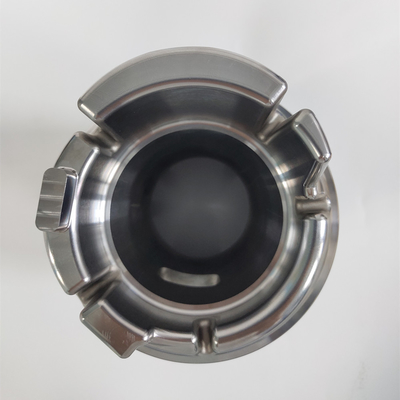

The Description Of Mold Core Insert
Mold Core Inserts are the terms relative to the integrated core – when the mold core is made of a single piece of steel, it is called an integrated core, while an insert is a part that’s inserted into the mold core made primarily of the steel material. As a matter of fact, the biggest weakness of an Mold Core Insert is that it weakens the rigidity of the mold as a whole. However, the application of different Mold Core Insert materials is able to independently enhance the rigidity of the weak parts
Now, let’s see what the circumstances for Mold Core Inserts applications are:
1. Material Saving
The dimensioning of a mold core is defined by its highest point. If there is only one single point rising up regularly, this part can be inserted, so as to make the core shorter during dimensioning. easy Processing for mold making. During processing, EDM is the slowest equipment with the poorest precision. As a result, an insert is selected to avoid EDM processing
2. Facilitate Ventilation
Mold Core Inserts are usually needed for such circumstances as imperfect drainage during EDM processing and poor ventilation during molding, especially true for some deep ribs
3. Guarantee Precision
The grinding machine processes the highest level of processing precision. Sometimes, to guarantee precision, the application of inserts is subject to grinding machine processing requirements, change Requirements. Sometimes, a customer may request to change the label of the same product, so interchangeable inserts are necessary under such circumstances
4. Convenient Polishing
It is rather inconvenient to polish the mold sometimes, especially for some deep parts. As a result, an insert is needed
5. Convenient Mold Modification
Some parts wear easily or have high precision requirements. Out of consideration for mold modification, an insert will be applied
Specification
FAQ:
Q1: Are You A Trading Company Or A Factory?
A: We are factory in Dongguan over 15 years, but we also have a professional team for the overseas business and after sales service
Q2: How To Get A Quotation?
A: for standard product: model + size and quantity
for non standard products: provide drawing and quantity
Q3: How Long Is Your Delivery Time?
A: Generally the delivery time is 3-5 days, it varies according to the products and their quantity
Q4: Do You Provide Samples? Is It Free Or Payable?
A: Yes, we can offer you samples or raw material for your quality inspection, but you need to bear the cost for the freight. for some products, you also need to pay for the samples
Q5: How Can You Guarantee Quality?
A: Advanced Machine Equipment+ Mature Technology+ Skilled Workers ensure the quality of our products. Also our QC Department will check each piece before every shipment
Q6: After-sale Service
A: Contact us if you have any question after receiving the samples or products, we’ll try our best to solve the problem until you are satisfied
Q7: Standards
A: All the mainstream standards in the world such as DIN, JIS, AISI, ISO, DME, MISUMI, PUNCH, FIBRO, HASCO, DAYTON, etc.
