Product Details:
|
| Material: | Bohlor W201HH Die Steel | Hardness: | HRC50 |
|---|---|---|---|
| Accuracy: | +/-0.002mm | Surface Treatment: | Polished, Tin, Ticn, Crn, DlC Etc |
| Parts Name: | Mold Core Pin | Application: | Plastic Injection Mould |
| Standard: | JIS, DIN, En, ASTM, AISI | Design Software: | Auto Cad, Autocad/Ug/Solidworks, CAD |
| Dimension: | Customized | Processing: | CNC Lathe, Grinding Etc |
| Color: | Customize | Feature: | Durable |
| Highlight: | HRC50 Precision Core Pin,ISO 9000 Precision Core Pin,HRC50 Injection Molding Components |
||
OEM Hardness HRC50 Precision Core Pin Injection Molding Components
OEM Precision Mold Core Pin Injection Molding Components with Inspection Report Available

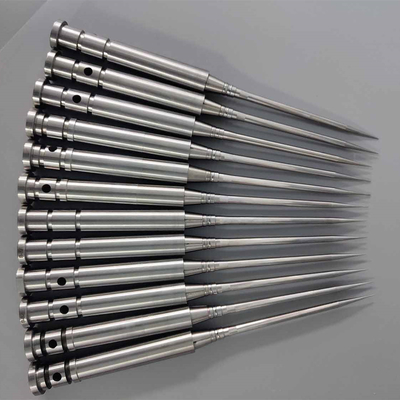

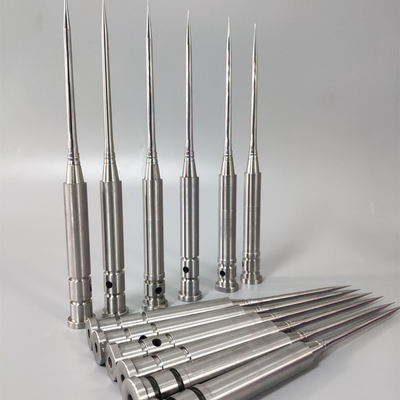

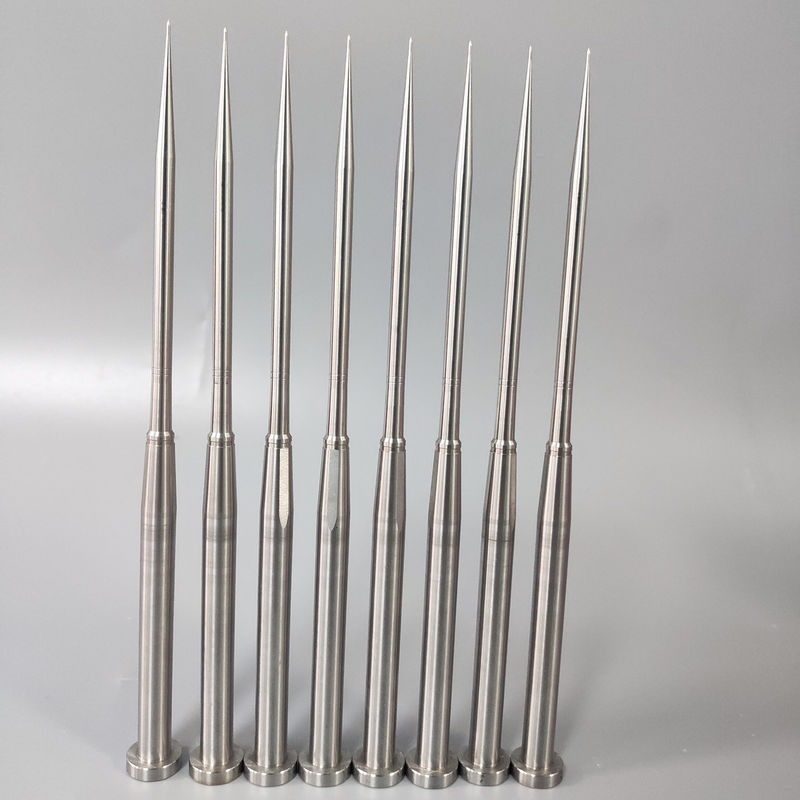

The Description Of Mold Core Pin
A Mold Core Pin is an extended or male portion of the mould which creates the internal surface used in plastic injection moulding often in the medical industry. this particular Mold Core Pin is used for injection moulding medical pipettes used in fluid sampling. A Mold Core Pin is usually made of M2 steel, High‐Strength H13, or other tool steel. Mold Core Pin need a certain level of toughness, but they also need to withstand a certain amount of misalignment in the moulding process without breaking. In addition, the successful use of Mold Core Pin depends largely on the grinding process and on this essential points:
• Pinch grinding is needed in order to avoid deflection during the grinding cycle
• Near‐perfect TIR
• Avoid heat issues during grinding to prevent changing metal characteristics and to avoid warping the pins
Specification of Mold Core Pin
| Product Description: | Plastic Mold Core Pin Insert |
| Feature: | Non marking and Non flash |
| Size: | According to your 2D, 3D Drawing |
| Color,Quantity,Unit Price,Tooling Cost,Tooling Size: | To be discussed |
| Package: | Standard exported carton box packed |
| Lead Time: | 4-5 weeks, Part measurement report (upon required) |
| To be discussed | In-Mold Decoration, Injection Mould, Plastic Mold, Overmould, 2K Mould, Die-Casting Mould, Thermoset Mold, Stack Mold, Interchangeable Mold,Collapsible Core Mold, Die Sets, Compression Mold, Cold Runner System LSR Mold,...etc. |
| Material: | SKD61, S136, Stavax, Bohler, 1.2344, 1.2312 as per Customer's Requirment. |
| Surface Finish: | Polished, Mirror Polished |
| Equipments: | High speed CNC, Standard CNC, EDM, Wire Cutting, WEDM etc |
Why Choose Us:
1. Rich Experience
17 Years experiences in precision components machining
2. Advanced Equipment
Equiped with high accuracy machines imported from Japan, which include Fanuc, Sodick etc
3. Professional Team
Through a professional technique training , Senlan has had a large group of skilled technical workers, 60% of them worked in Senlan for 5-8 years, and thus formed a complete processing system
4. High Quality, Competitive Price And Fast Delivery Time
Own the factory under a humanitarian management system and flexible production time to guarantee the satisfying service
FAQ:
Q1: Are You Trading Company Or Manufacturer?
A: We are original manufacturer. we can do OEM/ODM business
Q2: How Long Is Your Delivery Time?
A: Samples: 3-7 days; Bulk order: 20 days
Q3: What Is Your Terms Of Payment?
A: T/T 30% as deposit, and 70% before delivery
Q4: How To Buy Your Products?
A: You can buy the products from our company directly. normally the procedure is sign the contract, payment by T/T, contact the express company or shipping company to delivery the goods
Q5: What Is The Warranty?
A: The free warranty is one year from the day of commissioning qualified. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free
