Product Details:
|
| Material: | HSS - High Speed Tool Steel | Hardness: | 60-62HRC |
|---|---|---|---|
| Tolerance: | +/-0.002mm | Merits: | Long-life |
| Surface Treatment: | Polished | Standard: | MISUMI,DIN,JIS,HASCO,AISI Etc |
| Highlight: | hole punch pins,hss piercing punches |
||

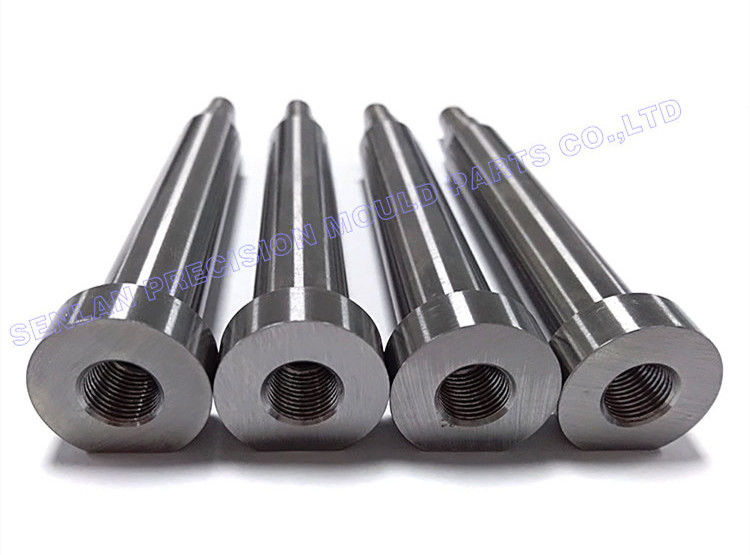

Standard HSS Round Head Stepped Die Punch Pins , Grinding Guide Pins
Specification
Size tolerance within +/-0.002mm
Axiality within 0.005mm
Surface Roughness within Ra0.6
Verticality within 0.005mm
The multi-cavity is well-matched
Further dimensions,lengths and materials available on request
Finish
Polished
Hardness
60-62HRC
Shipping
DHL, FedEx, UPS, TNT,by Sea
Delivery Time
7-20 days
Drawing Format
PDF/DWG/DXF/IGS/STEP,etc
Certificate
ISO9001-2008
Packaging
Inner packing with recycle plastic box and anticorrosive oil, outer with sponge and PE bags, or as customer's requirements.
Application field
Automation equipment parts, medcial, cosmetic packaging, daily necessities packaging etc.
Work Shop
Every part is carefully processed (by grinding, machining, milling, wire-cutting, EDM etc) to the exact tolerances shown on the drawing and carefully checked both in production line and QC room (QC check every dimension of every part before packing and shipping).In this way, we assured the high precision and thus the interchangeability in the tool room of the customers’ factory. We can offer the minimum size header punch as Q0.15. Thread Rolling die as M0.6*0.15. Mould as 0.6.

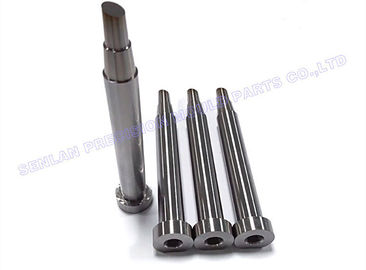

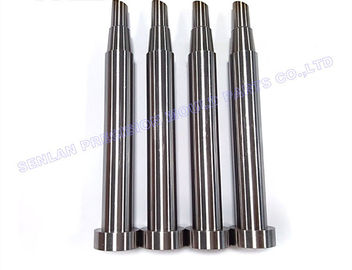

Product display
You will find that we offer a variety of Die Punch Pins for Mould Components, and Related Products.
SENLAN has established for over 8 years, Based on the background, we've had good reputation and scale in Dongguan; moreover, we have strong and good partnership with all our working partners. Today, our business has expanded worldwide to Eurasia, Europe, South Asia, and Southeast Asia.Our mission is to provide the best service and quality of products that suits your demand.
Further Information
|
Testing machine |
Digital Height Gauge, Caliper, Coordinate measuring machine, Projector Hardness tester and so on. |
| QC | 1) Technicians self-check in production 2) Engineer spot check in production 3) QC inspects after mass production finished 4) International sales who were trained the technical know-how spot check before shipping |
| Main Markets |
North America, South America, Eastern Europe , West Europe , North Europe, South Europe, South Asia, Africa Africa |
FAQ
Q1: What is the procedure of products enquiry?
A1: The way we do is that you send your enquiry with the details as follow:
(1). Product pictures/designs (if applicable)
(2). Drawing
(3). Quantity (if applicable, or we shall provide our MOQ)
(4). Material
(5). Coating way (if applicable)
Then we shall offer you the best price/weights/material/estimated working days with the quotation or the further information.
We produce the products by following your provided drawings.
Q2: What kinds of products do you supply?
A2: Core pin,cavity pin,insert pin etc
HSS punch ,Precision punch ,Special-shaped punch
ejector pins,ejector sleeve,two-stage ejector pins etc
Guide pillars ,Guide bushings ,Guide post set
Slide Core Units,Latch locks,locating Series
Q3: How to order ?
(1). Send us drawing or standard code & size
(2). We quote you within 1 day
(3). Get agreement with price and sign PO or Contract
(4). Make payment in advance
(5). If sample required, we will make sample first
