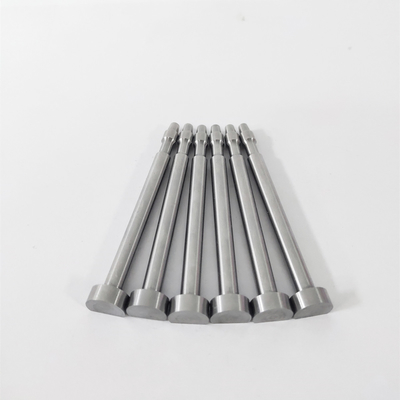

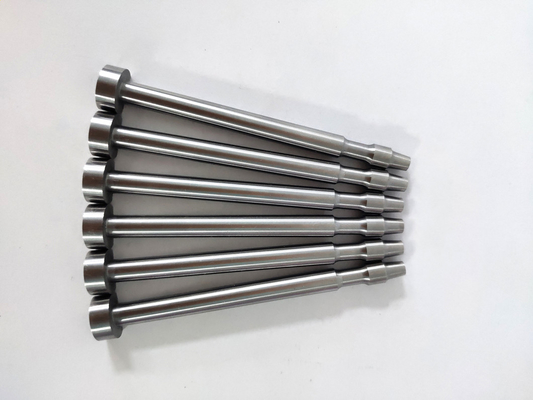

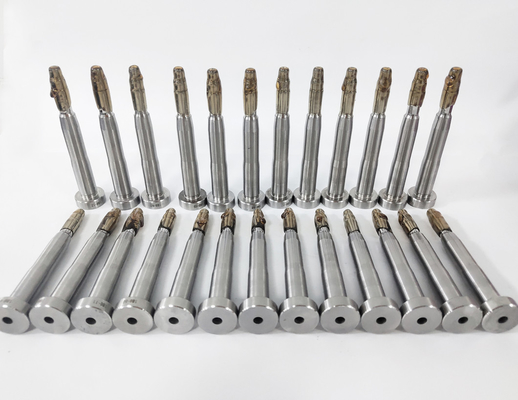

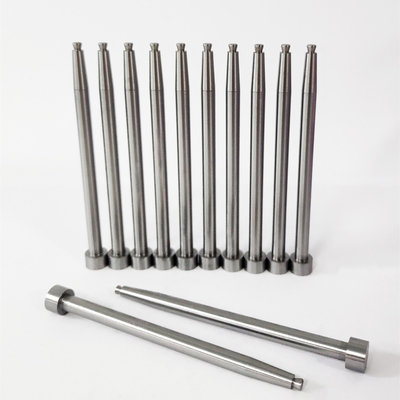

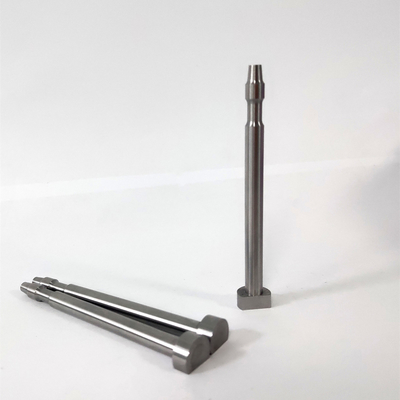

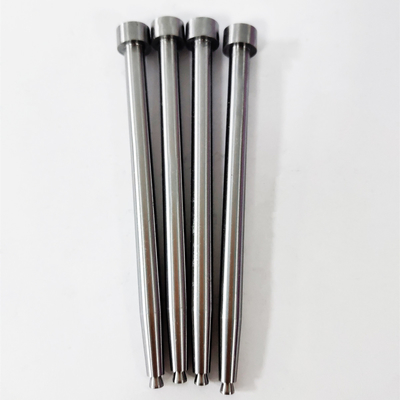

Product Details:
|
| Material:: | HSS - High Speed Tool Steel | Hardness:: | HRC45-60 |
|---|---|---|---|
| Accuracy:: | +/-0.01mm | Surface Treatment:: | Nitrited |
| Merits:: | Long-life | Standard: | MISUMI ,DIN ,JIS，HASCO，AISI Etc |
| Highlight: | precision punch pins,hss piercing punches |
||
Products Features:
| Material: | SKD61,DAC,H13,1.2347,8346 |
| Hardness | HRC45-60 |
| Heat treatment | Available+Nitriding treatment |
| MOQ | 1 pcs |
| Service | Made-to-order |
| Surface treatment | Nitriding |
| Application field |
Parts are used on medical, cosmetic packaging, daily necessities packaging etc. |
| Lead Time | 7-20 days, depending on order quantity |
| Our Website | http://www.precision-mouldparts.com |
Specification
1. Standards: MISUMI,HASCO,DME,DAYTON
2. Size tolerance within +/-0.001mm
3. Axiality within 0.002mm
4. Roundness within 0.0015mm
5. Polishing: can make close to Ra0.4 standard is R0.8
6. Further dimensions, lengths and materials available on request
7. The punch & die can be replace when it is worn
Machinery & Equipments
1. CNC machining center; CNC milling machine ,CNC lathe machine
2. Sodick EDM,Sodick Wire-cutting
3. OD Grinding,ID Grinding,Surface grinding machine
Packing & Delivery &Payment
Package:
Coated with anticorrosive oil, packed in carton box with bubble wrap, together with QA report.
Express:
DHL, FedEx, UPS, TNT,by Sea or by air
Payment:
T/T, Paypal, Western Union,50% deposit,balance before shipment is available
Business Scope
1. Core pin,cavity pin,insert pin etc
2. HSS punch ,Precision punch ,Special-shaped punch
3. Ejector pins,ejector sleeve,two-stage ejector pins etc
4. Guide pillars ,Guide bushings ,Guide post set
5. Slide Core Units,Latch locks,locating Series
Our Advantage:
1. Established in 2006
2. Factory size : 2500 square meters
3. Research & Development Group : 6 people
4. Equipment & Machine : all imported precision ones
5. Good reputation in Mold Components Area.
6. One-step servise for your much time and cost .
7. Complete quality management system
Equipment List
| CNC | TAKISAWA | NEX-108 | 0.002mm | 4 | Japan |
| WEDM | SODICK | AQ400LS | 0.003mm | 2 | Japan |
| CHMER | G435 | 0.005mm | 1 | Taiwan | |
| EDM | CREATOR | CJ-235 | 0.005mm | 4 | Taiwan |
| Mirror EDM | SODICK | Sodick-AM30LS | 0.003mm | 2 | Japan |
| MAKIMO | EDGE2 | 0.002mm | 1 | Japan | |
| Desktop lathe | JINGCHENG | YB-15 | 0.05mm | 4 | China |
| YB-25 | 0.05mm | 2 | |||
| OD grinder | HOTMAN | FX-03 | 0.002mm | 5 | China |
| ID grinder | HOTMAN | FX-05 | 0.002mm | 3 | |
| Centeless grinder | HOTMAN | FX-12S | 0.001mm | 2 | China |
| Surface Grinder | SHUGUANG | 614 | 0.001mm | 4 | China |
| 618 | 0.001mm | 2 | |||
| EDM drilling | ZENBANG | ZB-03 | 0.01mm | 1 | Taiwan |
| Miller | TOPINR | AVA | 0.01mm | 2 |
